Name: WCMI 1D 2D Auto Scan 2d Wired Embedded Vending Machine Price Checker Finger Alipay Barcode Scanner Qr Code Scanner Module
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Barcode Scanner Engine

WCMI 1D 2D Auto Scan 2d Wired Embedded Vending Machine Price Checker Finger Alipay Barcode Scanner Qr Code Scanner Module

Product Details:

Place of Origin:	China
Brand Name:	WCMi

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner Module	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4	Optical Resolution:	4mil
Warranty(year):	2-Year	After-sales Service:	Return And Replacement
Software Development Kit (sdk):	NO	Color:	Black
Product Name:	SE4130 Barcode Scanner Engine	Precisions:	1d ≥4mil / 2d ≥10mil
Language Supported:	English/Customized	Image (Pixels) Sensor:	640 X 480 CMOS @ 30fps
Light Source:	Fill Light: White 6500K LED / Aiming Light: Red LED	Weight:	<5g
Dimensions:	21.75mm X 7.2mm X 9mm	Interface:	TTL-232 / USB 2.0 Full Speed
Scan Angle:	Rotation: 360°, Pitch± 60°, Deflection±60°	Storage Temperature:	-40℃ ~ 70℃

Product Description

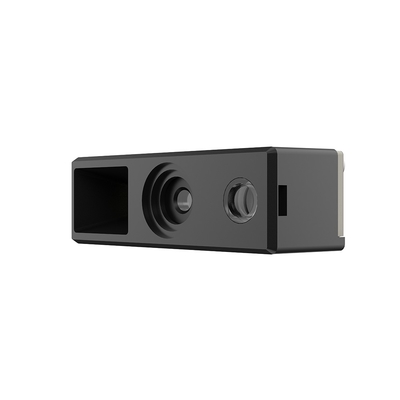

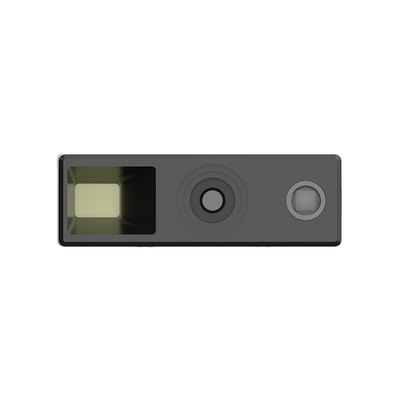

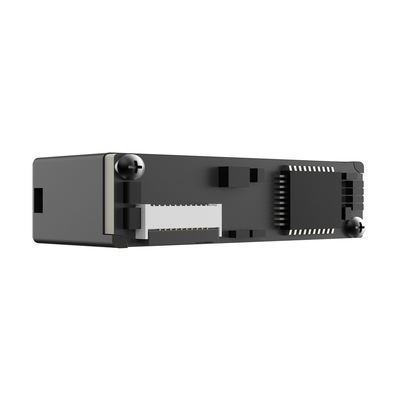

SE4130 is a mini 2D scanning engine with high integration, flexibility and convenience, and excellent performance. It can be widely used in finger ring type reader, neck strap type reader, BT pocket portable reader and other products. By leveraging our own technology, we have further perfected the engine’s overall scan performance, supporting all common 1D, 2D codes.

Product parameters
General	Type	Scanning Engine
		Product model	SE4130
		Brand Name	WCMI
		Product Specification	Mini Scanning Engine
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	18 months
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS、CE、FCC
		Color	black
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan Code Performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
		Light Source	Fill Light: White 6500K LED / Aiming Light: Red LED
		View Angle	Horizontal 37°, Vertical 28°
		Decoding capability	2d: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417 1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code 16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)
		Depth of Field	Code39: 50~90mm （5mil） EAN13: 40~210 mm （13mil） CODE128: 45~250 mm （15mil） QR: 40-180mm(15mil)
		Scan Angle	Rotation: 360°, Pitch: ±60°, Deflection: ± 60°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥4mil / 2d ≥10mil
		Symbol Contrast	≥15%
Physical Parameters	Weight	<5g
		Dimensions	21.7mm x 7.2mm x 9mm
		Interface	TTL-232 / USB 2.0 Full Speed
		Prompt Mode	LED prompt and buzzer (external connection available)
		Voltage	+3.3VDC±5%
		Current	working: 170mA; Sleeping: 800uA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Operating Humidity	5%RH~95%RH (Non-condensing)

Related Products

Certifications

Our Advantages

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it.

The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors. Currently，It has obtained 7 invention patents, 4 utility model patents and 10 appearance patents. The company has passed ISO9001 and ISO1400 1 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements, It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service.

Company Introduction

Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning products in China. It is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan.
The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning product，barcode scanner engine, algorithm licenses, etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries.
We sincerely look forward to win-win cooperation with you!

Packing&Shipping

FAQ

1,Do you have the items in stock?
The most of products are in stock.We can send the goods out within 7 days after payment received.For the goods are out of stock,production time is about 7-10 days.

2. What’s the warranty policy for the barcode scanners? We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order.

3,If the goods are damaged badly,who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport,and we can exchange the new goods for you.

4,Can you make OEM or ODM for products?
OEM and ODM products is available for customer,as long as customer meet the MOQ.

5,What about MOQ?
For production,we can accept sample order firstly,so there is not limit for MOQ

6,Besides the English language,do your printers support other languages?what operation system they backup?
Yes,our printer not only supports English language,but also Russian,Spanish,Portuguese ect. 48 different languages available,and it backups IOS,Android,Windows,Linux,Opos operation systems.

7.why should you buy from us not from other suppliers?
We have much experience in the development barcode scanner and all in one scanning products. Our products range incluseds wired
and wireless barcode scanner, omni-directional barcode scanner,，barcode scanner engine, algorithm
licenses . For the small quantity project, we are availble for the fast feedback and customized.

8,What warranty and after-sale service do you offer?
Each production will have two year (24 months) warranty. Free components will be offered for repair in warranty period,if the issue caused by non-artificial damages.
