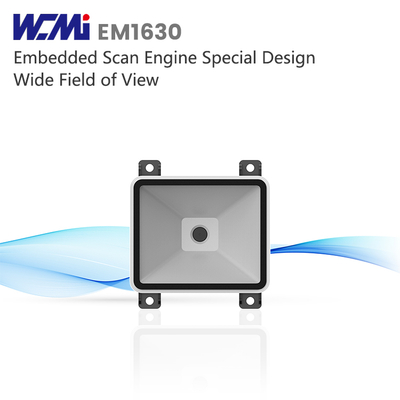

Name: A1EM1630 QR 2D OEM Bar Code Reader Scanner Auto Mobile Lector De Codigo De Barras Module Barcode Scanner Mini Embedded Qr Reader
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Embedded Barcode Scanner Module

A1EM1630 QR 2D OEM Bar Code Reader Scanner Auto Mobile Lector De Codigo De Barras Module Barcode Scanner Mini Embedded Qr Reader

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Optical Resolution:	640*480 CMOS
Warranty(year):	15 Months	After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support
Software Development Kit (sdk):	Yes	Color:	White
Sensor:	CMOS 640*480	Light Source:	White Fill Light/Color Light Prompt
View Angle:	Horizontal 68°	Scan Angle:	Rotation: 360°, Pitch: 60°, Deflection: 60°
Material:	ABS	Precisions:	1d ≥5mil / 2d ≥10mil
Symbol Contrast:	≥25%	Weight:	30g
Dimension:	65mm X 61.5mm X 30.7mm

Product Description

Specification

Product Parameters
General	Type	Embedded Barcode Scanner Module
		Product model	EM1630
		Brand Name	WCMI
		Product Specification	Embedded Barcode Scanner Module
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	2yeras
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS FCC CE
		Color	white
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan Code Performance	Image (Pixels) Sensor	640x480 CMOS

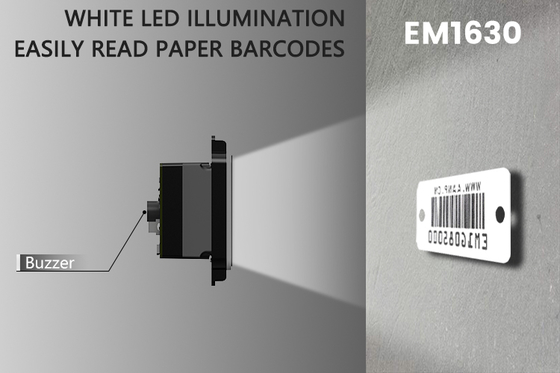

		Light Source	White fill light/Color light prompt
		View Angle	Horizontal 68°

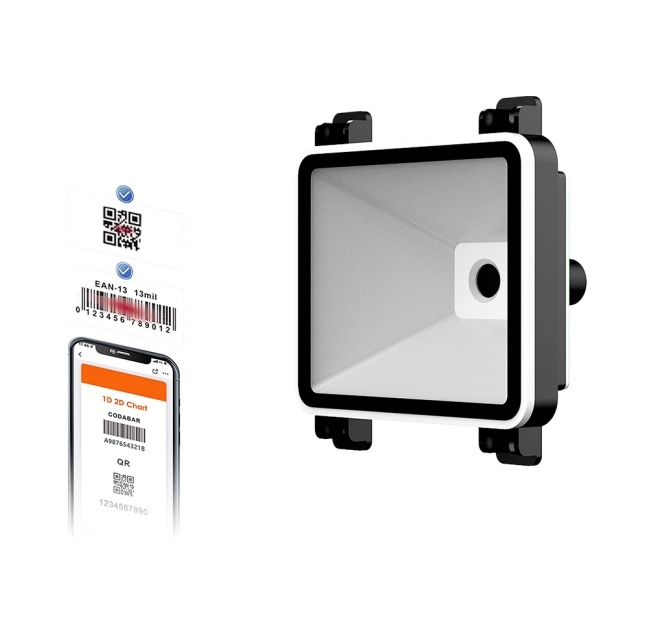

		Decoding capability	2D:QR Code,PDF417,DataMatrix(ECC200) 1D:EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code 39,Code93,CodaBar ,Interleaved 2 of 5,Industrial 25,Matrix 2 of 5,Code11, MSI Plessey ,RSS-14, RSS-Limited, RSS-Expanded
		Depth of Field	EAN-13:2 ~ 11.0cm （13mil） Code128 :2.5 ~ 13.0cm （15mil） Mobile phone QR code for taking bus :3.0 ~ 13.0cm (5-inch screen mobilephone) Wechat payment code: 1.0 ~ 20cm
		Scan Angle	Rotation: 360°, Pitch± 45°, Deflection±45°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥5mil / 2d ≥10mil
		Shock	5~200Hz，10Grms，3axes，1.5Hr
		Symbol Contrast	≥20%
Physical Parameters	Weight	30g
		Dimensions	65mm x 61.5mm x 30.7mm

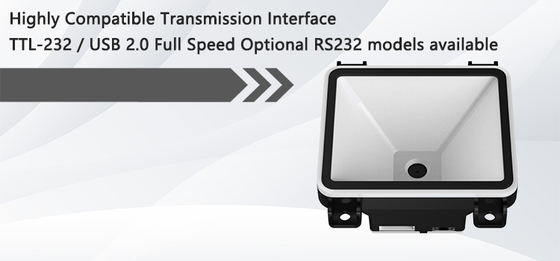

		Interface	TTL-232 / USB 2.0 Full Speed
		Material	ABS
		Voltage	DC +3.3V±5%，USB 5V
		Current	USB 5V power supply Operating:125mA(No voice broadcast)/450mA(Voice broadcast) Sleeping: 85mA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Period	24h
		Cycles	High Temperature: 30 minutes Low Temperature: 30 minutes
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Information

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

Certification

FAQ

1. Is OEM or ODM available?

Yes. We are the factory directly. We can make it as your requirement.
2. What’s the warranty policy for the barcode scanners?
We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is
necessary for replacement or new barcode scanners replacement in the next order.
3. Why so competitive?
We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs.
4. How to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
5. How about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
