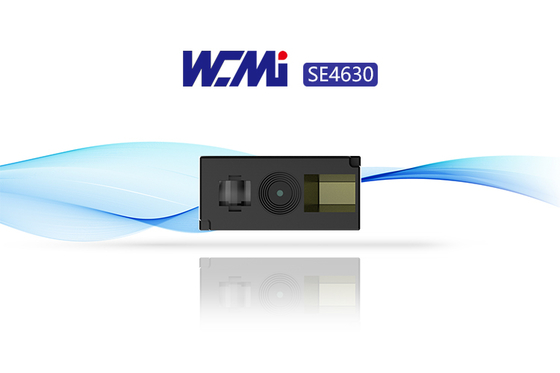

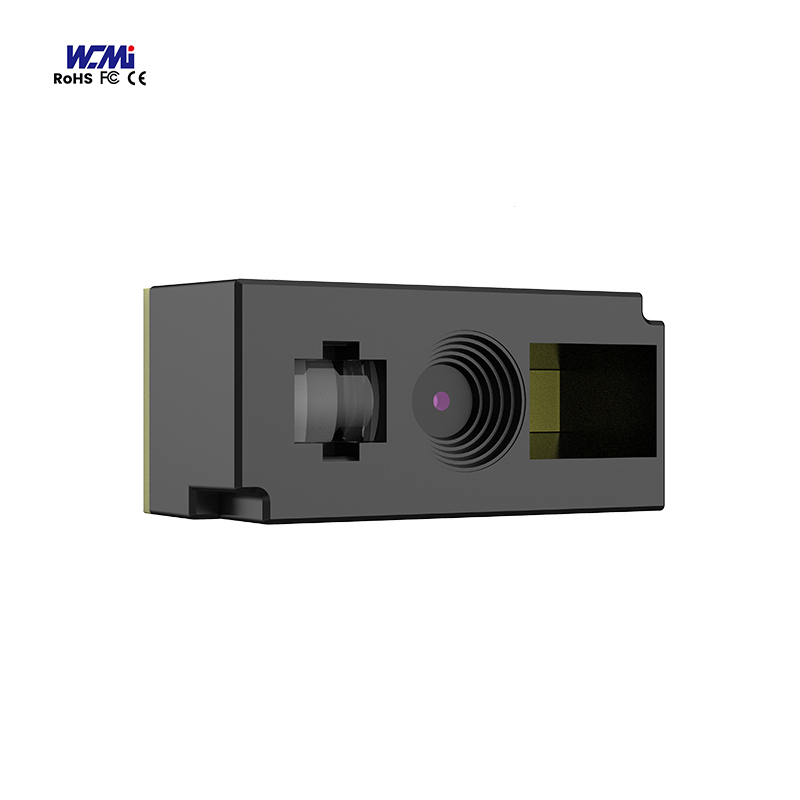

A1 SE4630 Passport Reader Mrz Ocr Scanners Qr Code Reader Module

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Optical Resolution:	640-480
Scan Speed:	60-100	Warranty(year):	15 Months
After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Black	Sensor:	CMOS 640*480
Light Source:	White LED	View Angle:	Horizontal 37°
Scan Angle:	Rotation: 360°, Pitch: 60°, Deflection: 60°	Scan Mode:	Induction Mode,continous Mode,manual Mode,command-triggered Mode
Precisions:	1d ≥5mil / 2d ≥10mil	Symbol Contrast:	≥20%
Weight:	<10g	Dimension:	26.15mm X 12.09mm X 13.85mm

Product Description

Product Parameters
General	Type	barcode scanner engine
		Product model	SE4630
		Brand Name	WCMI
		Product Specification	Mini Barcode Scanner Engine
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	2-year
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS、CE、FCC
		Color	black
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan code Performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
		Light Source	White LED
		View Angle	Horizontal 37°
		Decoding Capability	2D: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417 1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code 16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)
		Depth of Field	EAN13: 40~200 mm （13mil） CODE128: 45~250 mm （15mil） QR: 40-180mm(15mil)
		Scan Angle	Rotation: 360°, Pitch: ±60°, Deflection: ± 60°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥5mil / 2d ≥10mil
		Symbol Contrast	≥15%
Physical Parameters	Weight	<10g

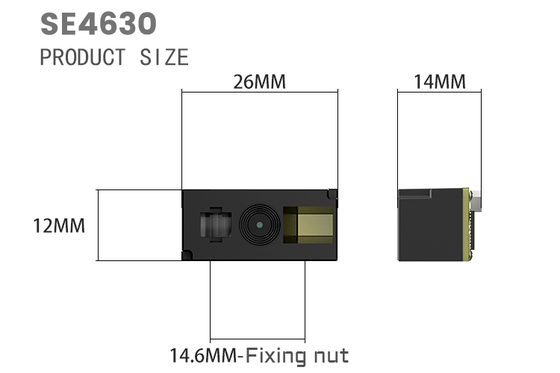

		Dimensions	26.15mm x 12.09mm x 13.85mm
		Interface	TTL-232 / USB 2.0 Full Speed
		Prompt Mode	LED prompt and buzzer (external connection available)
		Voltage	+3.3VDC±5%
		Current	working: 120mA; Sleeping: 500uA
Environmental Parameter	Operating Temperature	-20℃ ~ 60℃
		Storage Temperature	-40℃ ~ 70℃
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Information

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

Certification

FAQ

1. Is OEM or ODM available?

Yes. We are the factory directly. We can make it as your requirement.
2. What’s the warranty policy for the barcode scanners?
We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is
necessary for replacement or new barcode scanners replacement in the next order.
3. Why so competitive?
We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs.
4. How to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
5. How about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
