Name: A1 EM1730 Embedded 1D 2D Ticket OEM QR Code Scanning Robot Reader Barcode Scanner Module for Kiosk Machine
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Embedded Barcode Scanner Module

A1 EM1730 Embedded 1D 2D Ticket OEM QR Code Scanning Robot Reader Barcode Scanner Module for Kiosk Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Optical Resolution:	640*460
Warranty(year):	15 Months	After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support
Software Development Kit (sdk):	Yes	Color:	White
Sensor:	CMOS 640*480	Light Source:	Fill Light: White 6500K LED / Aiming Light: Red LED
View Angle:	Horizontal 74°, Vertical 58°	Scan Angle:	Rotation: 360°, Pitch: 60°, Deflection: 60°
Scan Mode:	Induction Mode,continous Mode,manual Mode,command-triggered Mode	Precisions:	1d ≥5mil / 2d ≥10mil
Symbol Contrast:	≥20%	Weight:	<15g
Dimension:	53.5mm X 36mm X 16mm

Product Description

Specification

Product Parameters
General	Type	Embedded Barcode Scanner Module
		Product model	EM1730
		Brand Name	WCMI
		Product Specification	Embedded Barcode Scanner Module
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	2yeras
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS FCC CE
		Color	white
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan Code Performance	Image (Pixels) Sensor	640x480 CMOS,30fps

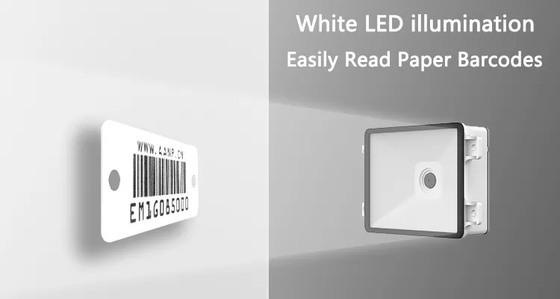

		Light Source	White LED(6500k)
		View Angle	Horizontal74°,Vertical58°
		Decoding capability	Default On: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QRCode、PDF417、DataMatrix Default Off: Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded
		Depth of Field	Wechat Payment Code: 12 ~ 200mm Refund Code:40 ~ 65mm
		Scan Angle	Rotation: 360°, Pitch± 45°, Deflection±45°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥5mil / 2d ≥10mil
		Motion Tolerance	≥ 80cm/s(payment code)
		Symbol Contrast	≥20%
Physical Parameters	Weight	<15g
		Dimensions	53.5mm x 36mm x16mm
		Interface	HID-KBW (Default) / HID-POS / USB virtual serial port / TTL232
		Material	ABS
		Voltage	DC +3.3V ~ +5V (±5%)
		Current	140mA@5V supply power
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		ESD Protection	Contact Discharge ±6KV, Air Discharge ±12KV
		Shock	5~200Hz，10Grms，3axes，1.5Hr
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Information

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

Certification

FAQ

1. Is OEM or ODM available?

Yes. We are the factory directly. We can make it as your requirement.
2. What’s the warranty policy for the barcode scanners?
We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is
necessary for replacement or new barcode scanners replacement in the next order.
3. Why so competitive?
We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs.
4. How to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
5. How about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
