Name: ASE4631 Factory 1d 2d Rs232 Cmos Module Usb Wired Qr Code Reader Embedded Barcode Scan Engine
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Barcode Scanner Module

ASE4631 Factory 1d 2d Rs232 Cmos Module Usb Wired Qr Code Reader Embedded Barcode Scan Engine

Product Details:

Place of Origin:	China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4	Optical Resolution:	640-480
Scan Speed:	60-100	Warranty(year):	2-Year
After-sales Service:	Return And Replacement, Free Spare Parts	Software Development Kit (sdk):	Yes
Color:	Black	Product Specification:	CMOS Barcode Scanner Module
Image (Pixels) Sensor:	640 X 480 CMOS @ 30fps	Light Source:	Fill Light: White LED / Aiming Light: Red LED
View Angle:	Horizontal 37°, Vertical 24°	Precisions:	1d ≥4mil / 2d ≥10mil
Symbol Contrast:	≥20%	Dimensions:	26.15mm X 12.09mm X 13.85mm
Interface:	TTL-232 / USB 2.0 Full Spe	Operating Temperature:	-20℃ ~ 60℃
Scan Angle:	Rotation: 360°, Pitch± 60°, Deflection±60°

Product Description

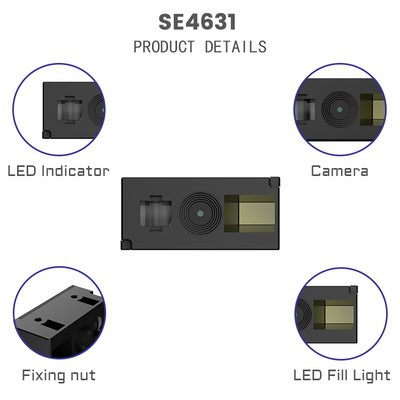

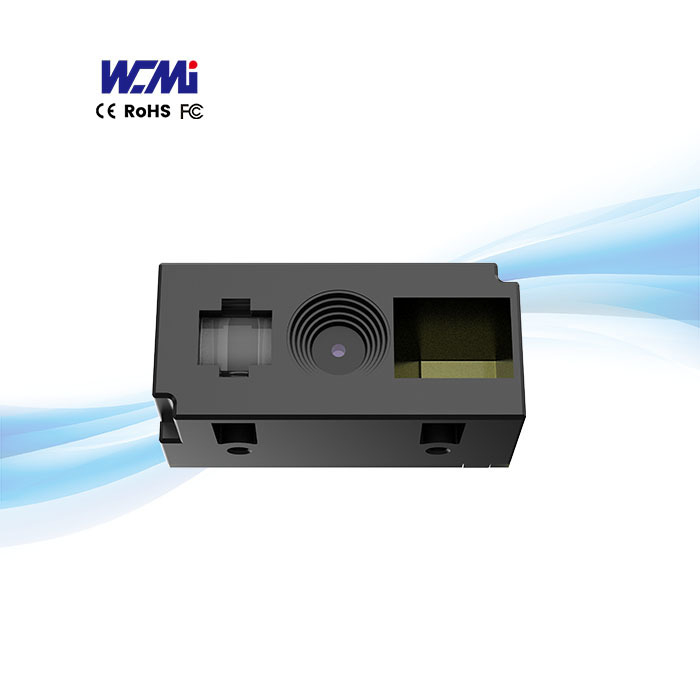

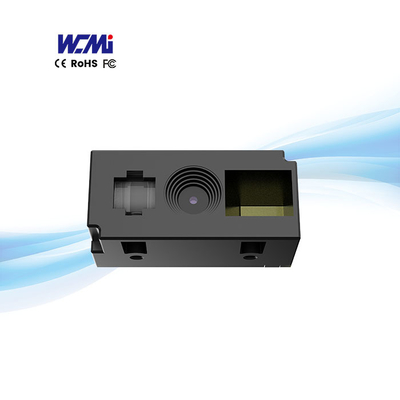

SE4631 is a mini 2D scanning engine with high integration, flexibility and convenience, and excellent performance. It can be widely used in ring type scanner, neck strap type reader, pocket portable reader and other products. By leveraging our own technology, we have further perfected the engine’s overall scan performance, supporting all common 1D, 2D codes..

Specification

item	value
Private Mold	Yes
Products Status	Stock
Type	Barcode Scanner engine
Scan Element Type	CMOS
Colour Depth	32 Bit
Interface Type	usb
Place of Origin	China
Warranty(Year)	15months
After-sales Service	Return and Replacement, Free spare parts
Software development kit (SDK)	Yes
color	Black
Product Specification	CMOS Barcode Scanner Module
Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
Light Source	Fill Light: White LED / Aiming Light: Red LED
View Angle	Horizontal 37°, Vertical 28°
Scan Angle	Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Precisions	1d ≥4mil / 2d ≥10mil
Symbol Contrast	≥20%
Dimensions	26.15mm x 12.09mm x 13.85mm
Interface	TTL-232 / USB 2.0 Full Spe
