Name: WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Barcode Scanner Engine

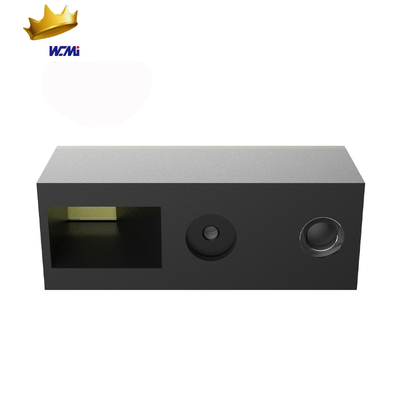

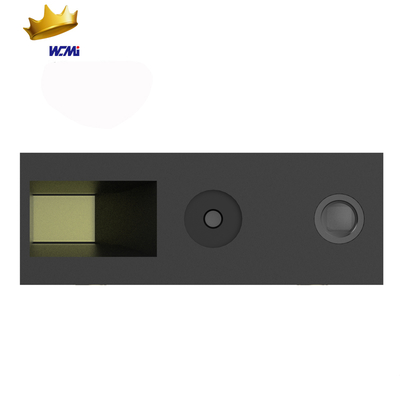

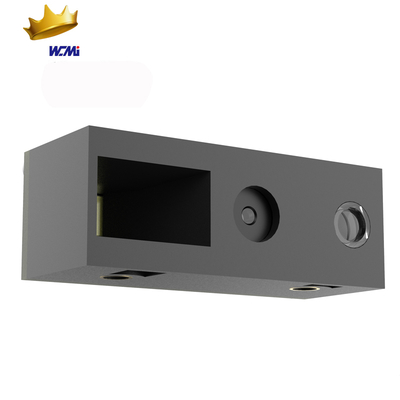

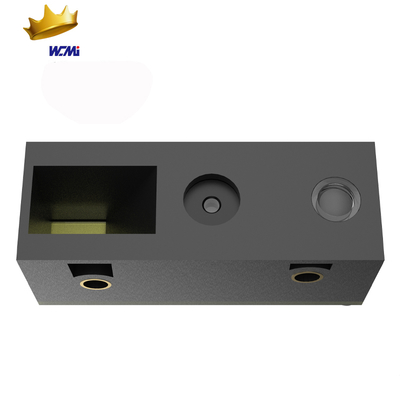

WCMI Embedded 1D 2D Barcode Scanner Module CMOS Barcode Scanner Module with RS232/USB Interface

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	NO	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, TTL-232
Max Paper Size:	A4	Optical Resolution:	4mil
Scan Speed:	200	Warranty(year):	2-Year
After-sales Service:	Return And Replacement, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Black	Product Name:	Barcode Scanner Engine
Interface:	TTL-232 / USB 2.0 Full Speed	Application:	ALL 1D 2D Barcode
Feature:	Scanning Fast And Exactly	Light Source:	White LED,Red LED
Scan Angle:	Rotation360°, Pitch± 60°, Deflection±60°	Scan Mode:	Continuous Mode, Induction Mode, Manual Mode, Command-Triggered Mode
Weight:	1.7g	Dimension:	22mm X 13.2mm X 8mm
Sensor:	CMOS 640*480

Product Description

The SE4231 scan engine offers consistent performance to operations facing a wide range of barcodes. A combination of mini-size construction and longer reading distance make the SE4231 an ideal choice for portable scanning devices. It scans reliably no matter the material, size or type of barcode. From small on-screen QR codes to long, printed 1D barcodes at a short distance, the SE4231 is fast and effective. Consistent allround scanning from paper, plastic and smartphones.

Specification

Product parameters
General	Type	Barcode Scanner Engine
		Product model	SE4230
		Brand Name	WCMI
		Product Specification	Mini Barcode Scanner Engine
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	2-year
		After-sales Service	Return and Replacement; Free spare parts

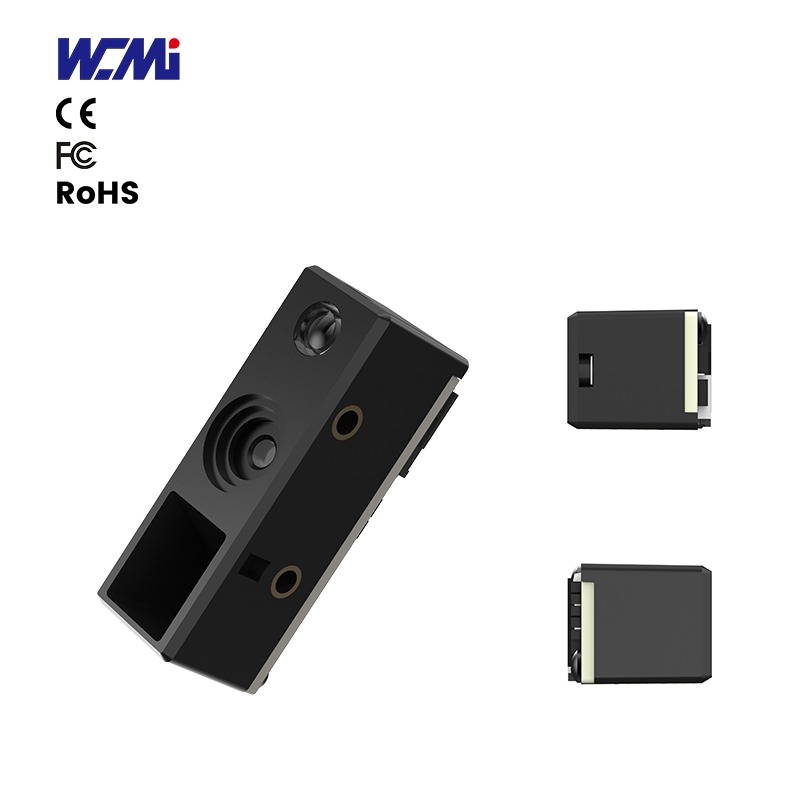

		Certification	RoHS FCC CE
		Color	black
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan code performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
		Light Source	Fill Light: White 6500K LED / Aiming Light: Red LED
		View Angle	Horizontal 32°, Vertical 24°
		Decoding capability	2D: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417 1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code 16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)
		Depth of Field	Code39: 45~120mm （5mil） EAN13: 45~300 mm （13mil） CODE128: 50~390 mm （15mil） QR: 30-230mm(15mil)
		Scan Angle	Rotation360°, Pitch± 60°, Deflection±60°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1D≥4mil / 2D ≥10mil
		Symbol Contrast	≥15%
Physical Parameters	Weight	<5g

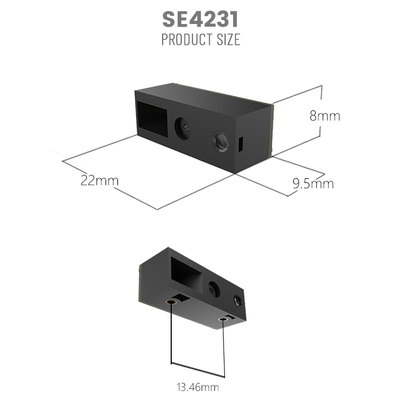

		Dimensions	22mm x 13.2mm x 8mm
		Interface	TTL-232 / USB 2.0 Full Speed
		Prompt Mode	LED prompt and buzzer (external connection available)
		Voltage	+3.3VDC±5%
		Current	working: 170mA; Sleeping: 800uA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Information

Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning products in China. It is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insists on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency.
The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors. Currently, it has obtained 7 invention patents, 4 utility model patents and 10 appearance patents
The company has passed I S O 9 0 0 1 and I S O 1 4 0 0 1 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements. It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service. The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning products, scanner engine, algorithm licenses,etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries.
We sincerely look forward to win-win cooperation with you!

QUALIFIED FACTORY

Product packaging

Certification

FAQ

\uD83C\uDD9A Is OEM or ODM available?

Yes. We are the factory directly. We can make it as your requirement.
\uD83C\uDD9A What’s the warranty policy for the barcode scanners?
We provide 2 year maintenance warranties. During warranty, free spare parts if necessary for replacement or new barcode scanners replacement in next order.
\uD83C\uDD9AWhy so competitive?
We have a professional R & D team and technical team and have a large domestic market. What's more, we have mature technology to save costs.
\uD83C\uDD9AHow to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
\uD83C\uDD9AHow about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by government. Many technical and design patents in different professional fields approved.
