Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode Scanner

Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode Scanner

Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
  • Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
  • Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
  • Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
  • Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
  • Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
  • Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
  • Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner
Product Details:
Place of Origin: Tianjin, China
Brand Name: WCMI
Certification: CE,RoHS,FCC
Contact Now
Detailed Product Description
Private Mold: NO Products Status: Stock
Type: Barcode Scanner Scan Element Type: CMOS
Colour Depth: 36 Bit Interface Type: Usb
Max Paper Size: A4 Optical Resolution: Optical Resolution: 4mil
Warranty(year): 15Months After-sales Service: Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support
Color: Black Product Name: Barcode Scanner Handheld
Interface: USB Light Source: White LED Red LED
Scan Mode: Continuous Mode, Induction Mode, Manual Mode, Command-Triggered Mode Scan Angle: Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Sensor: 640 X 480 CMOS @ 30fps Depth Of Field: Code39: (5mil) EAN13:(15mil) QR:(15mil)
Dimension: 138.18mm X 101.51mm X 63mm Weight: 0.2

Products Description

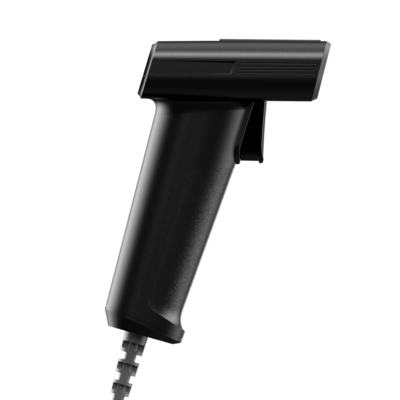

SD5130 is a wired handheld barcode scanner with a minimum 4mil identification density. The product has excellent paper and screen barcode scanning performance. The lighting of SD5130 can be customized according to requirements,it supports scan code buzzer feedback and vibration feedback. It can quickly read fuzzy, damaged, reversed, color, incomplete 1D or 2D barcode, besides, SD5130 can work in a wide range of temperature and humidity under various lighting environments (including completely dark environments).
With a high-speed camera optical technology, SD5130 is suitable for smart scenarios such as restaurant, supermarket, hotel,governments and so on.
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 0
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 2
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 4
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 6
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 8
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 10
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 12

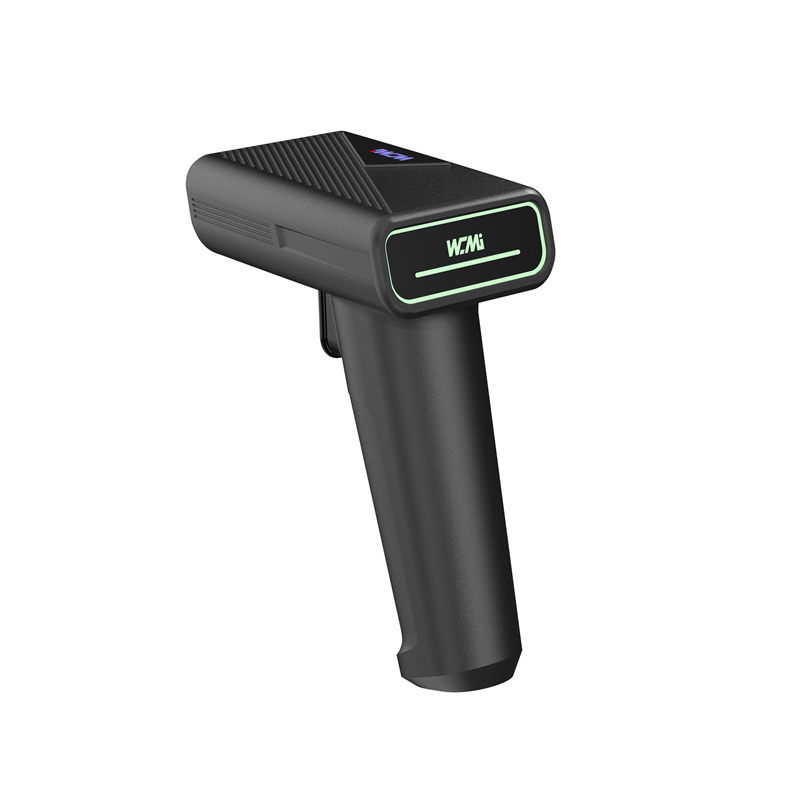

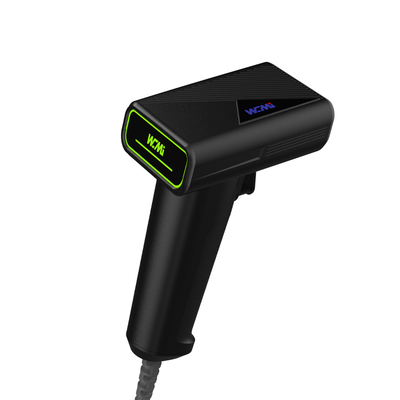

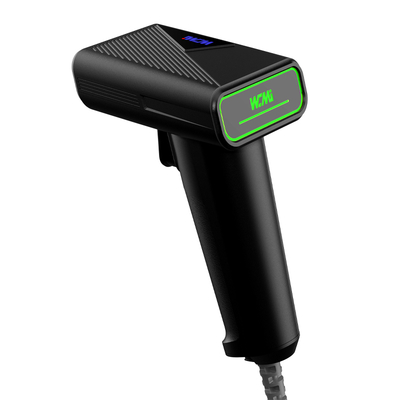

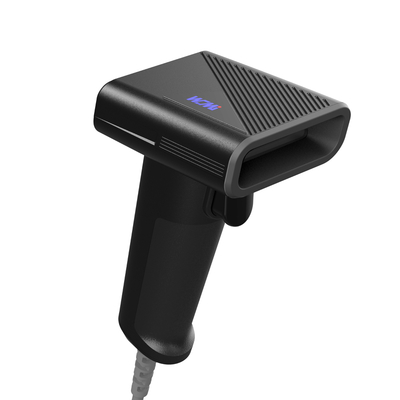

Product Specification: YHD-5700DB 2D Wireless Blue tooth Barcode Scanner
Scanner parameters:
Transmission mode:Blue tooth/2.4G/Wired
Storage:100,000 barcodes
Distance:50m/100m/1.5m
Sensor:640*480 CMOS
CPU:ARM 32-bit Cortex
Battery: 3.7V-2600mAh
Indication:Buzzer & LED
Light aimer: 617nm LED
Resolution :4mil
Anti-inference:0-100000Lux Max
Decoding speed:500scans/sec
Illumination: 6500K LEDs
Printing Contract :≥25%
Interface:USB,USB-COM
Button life :8000,000 times
Material: ABS+PC
Trigger Mode:Handheld,Continuous,Auto-Induction
Depth
Of
Field
13mil-EAN13
50-250mm
4mil-code39
60-100mm
20mil-QR
40-300mm
10mil-PDF417
40-280mm
Decode Capability:
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,
Coda bar,MSI Plessey,RSS,etc.
2D: QR Code, Data Matrix,PDF417,Aztec code,Maxicode,etc.
Scanning angle:Angle of rotation360°,inclination± 65°,declination ± 60°
Working current:3.3Vx200mA
Standby current :18uA-5mA
Working time :7 to 10 days
Charging power:5V-400mA
Certificate :CE,FCC,RoHS,IP54
Drop test :2m
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 14
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 16
JUST FOR YOU
ABOUT US
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 18
Shipping and Service
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 20
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 22
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 24
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 26
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 28
1.OEM:
(A)Silk print on the goods
(B)Firmware/software Customized
(C)Customized packing

2.ODM:
We can customized products according to the requirements of customers

3.Low MOQ:
We accept MOQ 1 pcs.

4.Team:
36 R&D staff technical team and professional sales
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 30
Factory Direct Android Qr Scanner 1d 2d Cord QR Reader Alipay Scanner Barcode  Scanner 32
Q1: Why customer choose us?
A: ISO9001 & ISO14001 factory with strictly quality control system.Prompt after-sales service.

Q2: Do you have the items in stock?
A: The most of products are in stock.We can send the goods out within 7 days after payment
received.For the goods are out of stock,production time is about 7-10 days.

Q3: What’s the warranty policy for the barcode scanners?
A: We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order.

Q4: If the goods are damaged badly,who is responsible for it?
A: We will be responsible for the damaged goods when it is damaged during transport,and we can exchange the
new goods for you.

Q5: Can you make OEM or ODM for products?
A: OEM and ODM products is available for customer,as long as customer meet the MOQ.

Q6: What about MOQ?
A: For production,we can accept sample order firstly,so there is not limit for MOQ

Q7: Besides the English language,do your printers support other languages?what operation system they backup?
A: Yes,our printer not only supports English language,but also Russian,Spanish,Portuguese ect. 48 different languages available,and it backups IOS,Android,Windows,Linux,Opos operation systems.

Q8: why should you buy from us not from other suppliers?
A: We have much experience in the development barcode scanner and all in one scanning products. Our products range incluseds wired and wireless barcode scanner, omni-directional barcode scanner,,barcode scanner engine, algorithm licenses . For the small quantity project, we are availble for the fast feedback and customized.

Q9: What warranty and after-sale service do you offer?
A: Each production will have two year (24 months) warranty. Free components will be offered for repair in warranty period,if the issue caused by non-artificial damages.
