Name: WCMI Qr Scanner 2d Wireless Scanner Barcode 1d Scanner Hand Free Scanmarker Machine Advanced Id Passport
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Wired

WCMI Qr Scanner 2d Wireless Scanner Barcode 1d Scanner Hand Free Scanmarker Machine Advanced Id Passport

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI
Certification:	CE,RoHS,FCC

Contact Now

Detailed Product Description

Private Mold:	NO	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	36 Bit	Interface Type:	Usb
Max Paper Size:	A4	Optical Resolution:	Optical Resolution: 4mil
Warranty(year):	15Months	After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support
Color:	Black	Product Name:	Barcode Scanner Handheld
Interface:	USB	Light Source:	White LED Red LED
Scan Mode:	Continuous Mode, Induction Mode, Manual Mode, Command-Triggered Mode	Scan Angle:	Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Sensor:	640 X 480 CMOS @ 30fps	Depth Of Field:	Code39: (5mil) EAN13:(15mil) QR:(15mil)
Dimension:	138.18mm X 101.51mm X 63mm	Weight:	0.2

Product Description

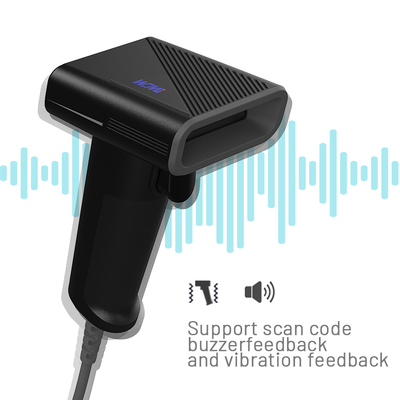

SD5130 is a wired handheld barcode scanner with a minimum 4mil identification density.The product has excellent paper and screen barcode scanning performance. The lighting of SD5130 can be customized according to requirements,it supports scan code buzzer feedback and vibration feedback.It can quickly read fuzzy, damaged, reversed, color, incomplete 1D or 2D barcode, besides, SD5130 can work in a wide range of temperature and humidity under various lighting environments (including completely dark environments).With a high-speed camera optical technology, SD5130 is suitable for smart scenarios such as restaurant, supermarket, hotel, governments and so on.

Specification

Product Parameters
General	Type	Handheld Barcode Scanner
		Product model	SD5130
		Brand Name	WCMI
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	15 months
		After-sales Service	Return and Replacement; Free spare parts
		Certification	CE、RoHS、FCC
		Language Supported	English/Customized
Scan code performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
		Light Source	Fill Light: White 6500K LED / Aiming Light: Red LED
		View Angle	Horizontal 32°, Vertical 24°
		Decoding capability	2D: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417 1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Expand、RSS-Limited、 Standard 2 of 5、Code 16K、Plessey、ChinaPost
		Depth of Field	Code39: 40~105mm （5mil） EAN13: 40~280 mm （13mil） CODE128: 45~370 mm （15mil）QR:20-210mm(15mil)
		Scan Angle	Rotation: 360°, Pitch: ±60°, Deflection: ±60°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥4mil / 2d ≥10mil
		Symbol Contrast	≥15%
Physical Parameters	Weight	<200g
		Dimensions	138.18mm x 101.51mm x 63mm
		Interface	USB
		Prompt Mode	LED prompt，Vibration motor and buzzer
		Voltage	DC+5V ±5%
		Line Length	1.8m
		Current	320mA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Profile

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

Certifications

FAQ

Is OEM or ODM available?
Yes. We are the factory directly. We can make it as your requirement.
What’s the warranty policy for the barcode scanners?
We provide 2 year maintenance warranties. During warranty, free spare parts if necessary for replacement or new barcode scanners replacement in next order.
Why so competitive?
We have a professional R & D team and technical team and have a large domestic market. What's more, we have mature technology to save costs.
How to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
How about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by government. Many technical and design patents in different professional fields approved.
