Name: WCMI Embedded 2D Qr Code Reader for Kiosk Machine Fixed Mount Small Barcode Scanner White Light Phone QR Code for Taking Bus
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Embedded Barcode Scanner Module

WCMI Embedded 2D Qr Code Reader for Kiosk Machine Fixed Mount Small Barcode Scanner White Light Phone QR Code for Taking Bus

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	NO	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, TTL-232
Max Paper Size:	A4	Optical Resolution:	5mil
Warranty(year):	15 Months	After-sales Service:	Return And Replacement, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support
Software Development Kit (sdk):	NO	Color:	White
Product Name:	Barcode Scanner Engine	Sensor:	CMOS 640*480
Light Source:	White Fill Light	View Angle:	Horizontal72°
Scan Angle:	Rotation: 360°, Pitch± 45°, Deflection±45°	Scan Mode:	Continuous Mode, Induction Mode, Manual Mode, Command-Triggered Mode
Weight:	30g	Precisions:	1d ≥5mil / 2d ≥10mil
Symbol Contrast:	≥20%	Dimension:	65mm X 61.5mm X30.7mm

Recommend Products

Product Description

Specification

Product parameters
General	Type	Barcode Scanner Engine
		Product model	EM１６３５
		Brand Name	WCMI
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	1-year
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS，CE，
		Color	WWhite
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan code performance	Image (Pixels) Sensor	640x480 CMOS
		Light Source	White Fill light
		View Angle	Horizontal72°
		Decoding capability	2d: QR Code、PDF417、DataMatrix（ECC200） 1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、 Code39、Code93、CodaBar 、Interleaved 2 of 5、 Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、 RSS-14、RSS-Expand, RSS-Limited
		Depth of Field	EAN13: 2~11.0cm （13mil） CODE128: 2.5~13.0cm （15mil） Wechat Payment Code: 1.0 ~ 18cm(5-inch phone )Mobile phone QR code for taking bus:3.0 ~ 13.0cm(5-inch phone)
		Scan Angle	Rotation: 360°, Pitch± 45°, Deflection±45°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥5mil / 2d ≥10mil
		Symbol Contrast	≥20%
Physical Parameters	Weight	30g

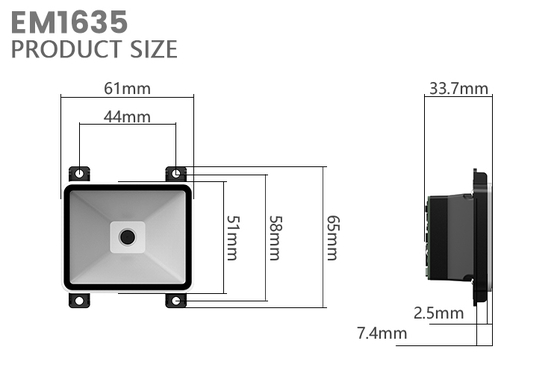

		Dimensions	65mm x 61.5mm x30.7mm
		Interface	TTL-232 / USB 2.0 Full Speed
		Oscillator	12MHz
		Voltage	DC +3.3V±5%,USB5V
		Current	USB 5V power supply working: 125mA; Sleeping: 85uA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Fall	Designed to withstand 1.2m drops
		Shock	5~200Hz，10Grms，3axes，1.5Hr
		Lowest Temperature	-20 °C (-4 °F)
		Maximum Temperature	60 °C (140 °F)
		Cycles	High Temperature: 30 minutes Low Temperature: 30 minutes
		Period	24
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Information

Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning products in China. It is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insists on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency.
The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors. Currently, it has obtained 7 invention patents, 4 utility model patents and 10 appearance patents
The company has passed I S O 9 0 0 1 and I S O 1 4 0 0 1 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements. It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service. The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning products, scanner engine, algorithm licenses,etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries. We sincerely look forward to win-win cooperation with you!

QUALIFIED FACTORY

Product packaging

Certification

FAQ

\uD83C\uDD9A Is OEM or ODM available?

Yes. We are the factory directly. We can make it as your requirement.
\uD83C\uDD9A What’s the warranty policy for the barcode scanners?
We provide 2 year maintenance warranties. During warranty, free spare parts if necessary for replacement or new barcode scanners replacement in next order.
\uD83C\uDD9AWhy so competitive?
We have a professional R & D team and technical team and have a large domestic market. What's more, we have mature technology to save costs.
\uD83C\uDD9AHow to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
\uD83C\uDD9AHow about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by government. Many technical and design patents in different professional fields approved.
