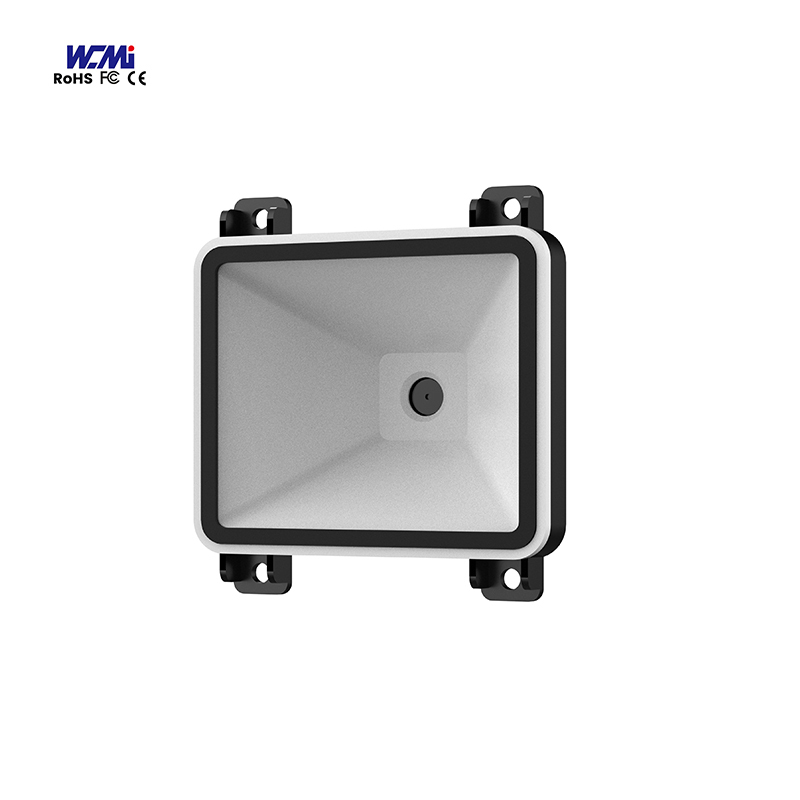

Name: A EM1630 Omnidirectional Scanner Barcode Fixed Mount Qr Code Reader Engine
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Embedded Barcode Scanner Module

A EM1630 Omnidirectional Scanner Barcode Fixed Mount Qr Code Reader Engine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Warranty(year):	2-Year
After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	White	Sensor:	CMOS 640*480
Light Source:	White LED	View Angle:	Horizontal 72°
Scan Angle:	Rotation: 360°, Pitch: 45°, Deflection: 45°	Scan Mode:	Induction Mode,continous Mode,manual Mode,command-triggered Mode
Interface:	TTL-232 / USB 2.0 Full Speed	Type:	Embedded Barcode Scanner Module
Weight:	30g	Dimension:	65mm X 61.5mm X 30.7mm

Product Description

Specification

Product Parameters
General	Type	Embedded Barcode Scanner Module
		Product model	EM1630
		Brand Name	WCMI
		Product Specification	Barcode Scanner Module
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	2 years
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS FCC CE
		Color	white
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan code Performance	Image (Pixels) Sensor	640x480 CMOS

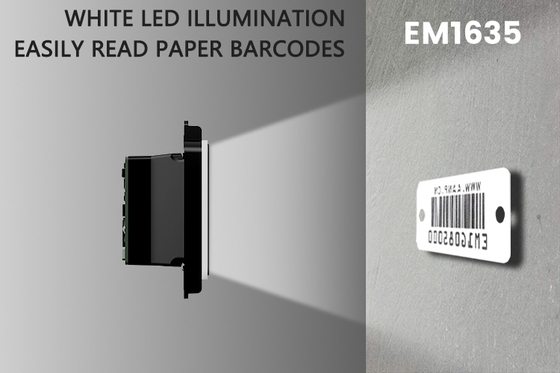

		Light Source	White Fill light
		View Angle	Horizontal72°
		Decoding capability	2d: QR Code、PDF417、DataMatrix（ECC200） 1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、 Code39、Code93、CodaBar 、Interleaved 2 of 5、 Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、 RSS-14、RSS-Expand, RSS-Limited
		Depth of Field	EAN13: 2~11.0cm （13mil） CODE128: 2.5~13.0cm （15mil） Wechat Payment Code: 1.0 ~ 18cm(5-inch phone ) Mobile phone QR code for taking bus:3.0 ~ 13.0cm(5-inch phone)
		Scan Angle	Rotation: 360°, Pitch± 45°, Deflection±45°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥5mil / 2d ≥10mil
		Symbol Contrast	≥20%
Physical Parameters	Weight	30g
		Dimensions	65mm x 61.5mm x30.7mm
		Interface	TTL-232 / USB 2.0 Full Speed
		Oscillator	12MHz
		Voltage	DC +3.3V±5%,USB5V
		Current	USB 5V power supply working: 125mA; Sleeping: 85uA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Fall	Designed to withstand 1.2m drops
		Shock	5~200Hz，10Grms，3axes，1.5Hr
		Lowest Temperature	-20 °C (-4 °F)
		Maximum Temperature	60 °C (140 °F)
		Cycles	High Temperature: 30 minutes Low Temperature: 30 minutes
		Period	24
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Information

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

Certification

FAQ

1. Is OEM or ODM available?

Yes. We are the factory directly. We can make it as your requirement.
2. What’s the warranty policy for the barcode scanners?
We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is
necessary for replacement or new barcode scanners replacement in the next order.
3. Why so competitive?
We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs.
4. How to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
5. How about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
