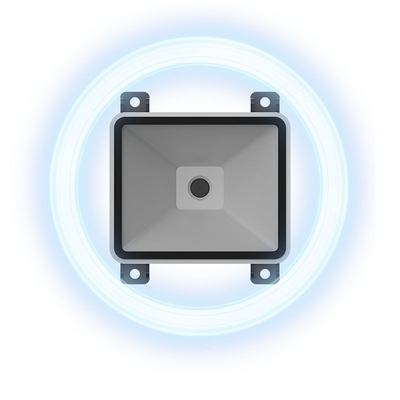

Name: WCMI Embedded 2d Barcode Scanner Module Small Barcode Module Rs232 Ttl Vending Machine Advertising Machine
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Embedded Barcode Scanner Module

WCMI Embedded 2d Barcode Scanner Module Small Barcode Module Rs232 Ttl Vending Machine Advertising Machine

Product Details:

Place of Origin:	Tianjin,China
Brand Name:	WCMI
Certification:	CE FCC ROHS

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, TTL-232
Max Paper Size:	A4 Size	Optical Resolution:	5mil
Scan Speed:	200	Warranty(year):	15-months
After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Black, White	Product Name:	Embedded Barcode Scanner Engine
Interface:	USB/ TTL232	Weight:	30g
Light Source:	White LED	Color:	Balck & White
Storage:	-40℃ ~ 70℃	Decode Capabilities:	1D + 2D
Warranty(Year):	15months

Recommend Products

Product Description

Specification

Product parameters
General	Type	Embedded Barcode Scanner Moudle
		Product model	EM1630
		Brand Name	WCMI
		Product Specification	Embedded Barcode Scanner Moudle
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		15Warranty(Year)	15months
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS FCC CE
		Color	Black with white
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan code performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps

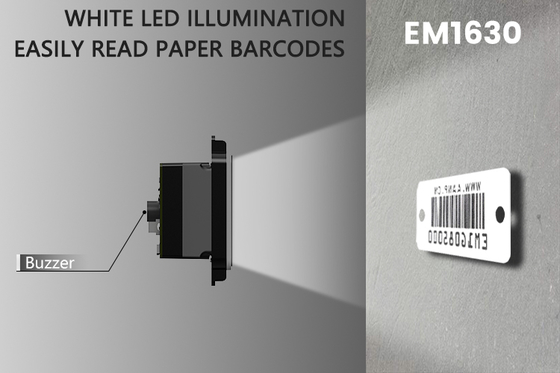

		Light Source	Fill Light: White fill light
		View Angle	Horizontal 68°
		Decoding capability	2d: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417 1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code 16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)
		Depth of Field	EAN-13:2 ~ 11.0cm （13mil） Code128 :2.5 ~ 13.0cm （15mil） Mobile phone QR code for taking bus :3.0 ~ 13.0cm (5-inch screen mobile phone) Wechat payment code: 1.0 ~ 20cm (5-inch screen mobile phone)
		Scan Angle	Rotation: 360°, Pitch±45°, Deflection±45°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥4mil / 2d ≥10mil
		Symbol Contrast	≥20%
Physical Parameters	Weight	30g
		Dimensions	65mm x 61.5mm x 30.7mm

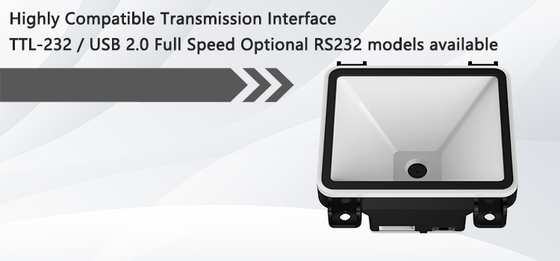

		Interface	TTL-232 / USB 2.0 Full Speed
		Prompt Mode	LED prompt and buzzer (external connection available)
		Voltage	DC+3.3V±5%
		Current	working: 170mA; Sleeping: 800uA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Operating Humidity	5%RH~95%RH (Non-condensing)

Packing & Delivery

Company Profile

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Certification

FAQ

1. Is OEM or ODM available? Yes. We are the factory directly. We can make it as your requirement. 2. What’s the warranty policy for the barcode scanners? We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order. 3. Why so competitive? We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs. 4. How to control the performance stability? We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered. 5. How about the factory? We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
