Name: A EM1630 1d 2d Qr Scanner Module Rs232 Usb Wired Embedded Barcode Scanner
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Embedded Barcode Scanner Module

A EM1630 1d 2d Qr Scanner Module Rs232 Usb Wired Embedded Barcode Scanner

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Optical Resolution:	640*480
Scan Speed:	60-100	Warranty(year):	15 Months
After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	White	Sensor:	CMOS 640*480
Light Source:	White Fill Light/Color Light Prompt	View Angle:	Horizontal 68°
Scan Angle:	Rotation: 360°, Pitch: 60°, Deflection: 60°	Material:	ABS
Precisions:	1d ≥5mil / 2d ≥10mil	Symbol Contrast:	≥20%
Weight:	30g	Dimension:	65mm X 61.5mm X 30.7mm

Product Description

Specification

Product Parameters
General	Type	Embedded Barcode Scanner Module
		Product model	EM1630
		Brand Name	WCMI
		Product Specification	Embedded Barcode Scanner Module
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	2yeras
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS FCC CE
		Color	white
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan Code Performance	Image (Pixels) Sensor	640x480 CMOS

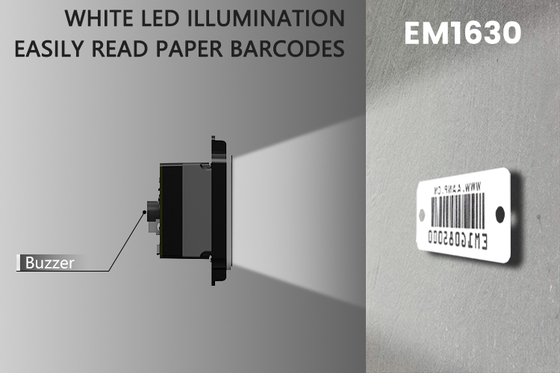

		Light Source	White fill light/Color light prompt
		View Angle	Horizontal 68°
		Decoding capability	2D:QR Code,PDF417,DataMatrix(ECC200) 1D:EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code 39,Code93,CodaBar ,Interleaved 2 of 5,Industrial 25,Matrix 2 of 5,Code11, MSI Plessey ,RSS-14, RSS-Limited, RSS-Expanded
		Depth of Field	EAN-13:2 ~ 11.0cm （13mil） Code128 :2.5 ~ 13.0cm （15mil） Mobile phone QR code for taking bus :3.0 ~ 13.0cm (5-inch screen mobilephone) Wechat payment code: 1.0 ~ 20cm
		Scan Angle	Rotation: 360°, Pitch± 45°, Deflection±45°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥5mil / 2d ≥10mil
		Shock	5~200Hz，10Grms，3axes，1.5Hr
		Symbol Contrast	≥20%
Physical Parameters	Weight	30g

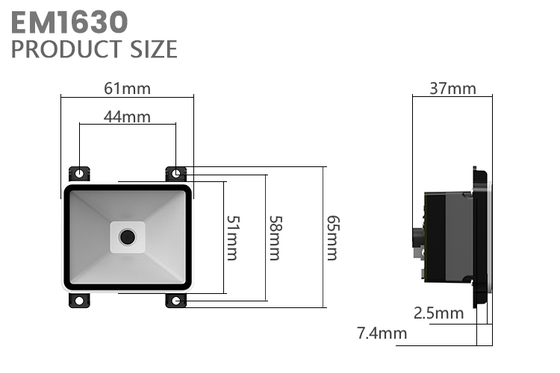

		Dimensions	65mm x 61.5mm x 30.7mm
		Interface	TTL-232 / USB 2.0 Full Speed
		Material	ABS
		Voltage	DC +3.3V±5%，USB 5V
		Current	USB 5V power supply Operating:125mA(No voice broadcast)/450mA(Voice broadcast) Sleeping: 85mA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Period	24h
		Cycles	High Temperature: 30 minutes Low Temperature: 30 minutes
		Operating Humidity	5%RH~95%RH (Non-condensing)
