Name: A EM1831 Access Control IC Card Reader RFID Lift Controller 2D QR Engine Elevator Board Barcode Scanner
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Elevator Control Products

A EM1831 Access Control IC Card Reader RFID Lift Controller 2D QR Engine Elevator Board Barcode Scanner

Product Details:

Place of Origin:	China
Brand Name:	WCMi

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Elevator Control Barcode Scanner Engine	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4	Optical Resolution:	640*480
Scan Speed:	60-100	Warranty(year):	1-Year
After-sales Service:	Return And Replacement, Free Spare Parts	Software Development Kit (sdk):	Yes
Color:	Black	Product Specification:	CMOS Barcode Scanner Module
Image (Pixels) Sensor:	640 X 480 CMOS @ 30fps	Light Source:	Fill Light: White LED / Aiming Light: Red LED
View Angle:	Horizontal 70°, Vertical 55°	Precisions:	1d ≥5mil / 2d ≥10mil
Symbol Contrast:	≥25%	Dimensions:	21.7mm X 7.2mm X 9mm
Interface:	TTL-Uart	Operating Temperature:	-30℃ ~ 70℃
Scan Angle:	Rotation: 360°, Pitch± 60°, Deflection±60°

Product Description

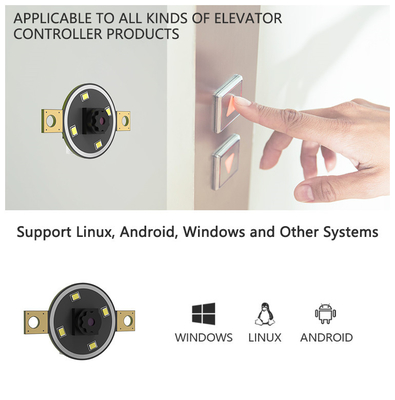

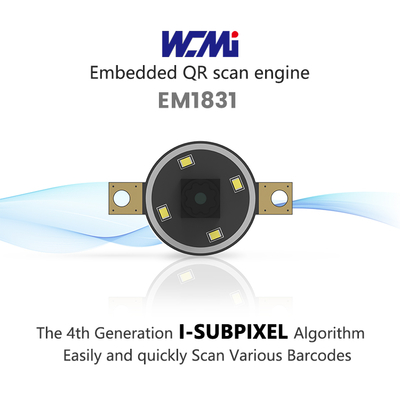

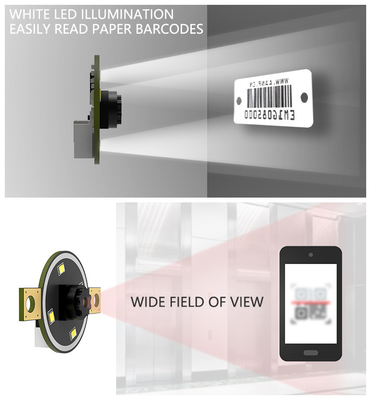

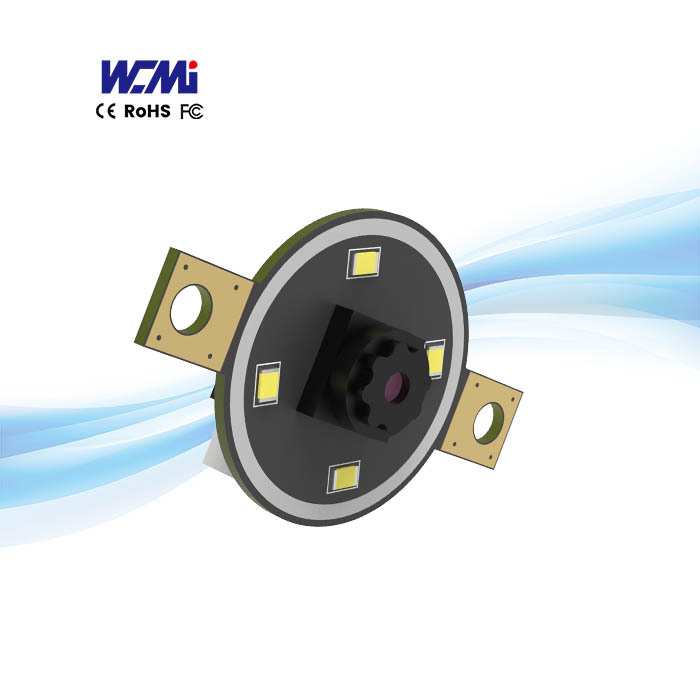

EM1831 is an embedded 2D barcode imaging module with small volume, high integration, flexibility and excellent performance. EM1831 has strong reading ability and can provide excellent code scanning and reading performance in various lighting environments(including completely dark environment) and large temperature and humidity range. It can also adapt to various harsh and complex working environments, such as impact, vibration and strong exposure.

Specification

item	value
Private Mold	Yes
Products Status	Stock
Type	Barcode Scanner engine
Scan Element Type	CMOS
Colour Depth	32 Bit
Interface Type	usb
Place of Origin	China
Warranty(Year)	15months
After-sales Service	Return and Replacement, Free spare parts
Software development kit (SDK)	Yes
color	Black
Product Specification	CMOS Barcode Scanner Module
Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
Light Source	Fill Light: White LED / Aiming Light: Red LED
View Angle	Horizontal 70°, Vertical 55°
Scan Angle	Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Precisions	1d ≥5mil / 2d ≥10mil
Symbol Contrast	≥25%
Dimensions	Outer diameter21mm±0.1mm；Height8.9mm±0.2mm（including Connector）
Interface	TTL-Uart

Company Profile

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

FAQ

1. who are we?
We are based in Tianjin, China, start from 2019.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Barcode Scanner, Barcode Scanner engine, Access Control Products, Elevator Control products, Barcode Scanner platform
4. why should you buy from us not from other suppliers?
We are one of the leading professional R&D manufacturers for barcode scanning products in China.

5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, CIP ,Express Delivery；
Accepted Payment Currency: USD, EUR, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish, Russian
