Name: A EM1830 1D 2D QR Code RS232 TTL 32Bit Fixed Mount USB Mini Barcode Scanner of Scan Code Payment
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Elevator Control Products

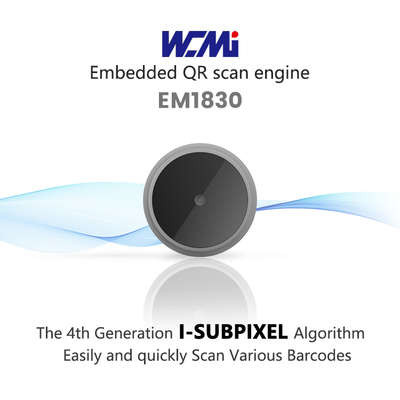

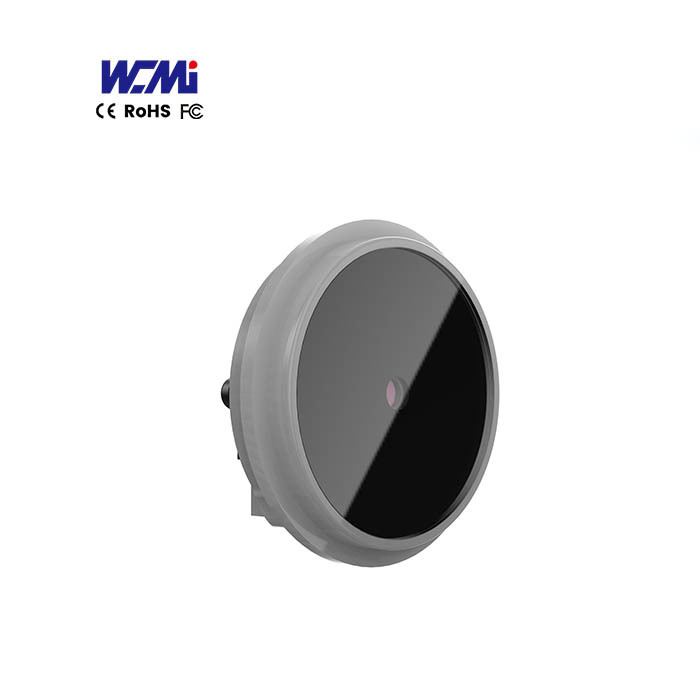

A EM1830 1D 2D QR Code RS232 TTL 32Bit Fixed Mount USB Mini Barcode Scanner of Scan Code Payment

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Warranty(year):	15 Months
After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Black	Sensor:	CMOS 640*480
Light Source:	Fill Light: White 6500K LED / Aiming Light: Red LED	View Angle:	Horizontal 70°, Vertical 55°
Scan Angle:	Rotation: 360°, Pitch: 60°, Deflection: 60°	Scan Mode:	Induction Mode,continous Mode
Precisions:	1d ≥5mil / 2d ≥10mil	Symbol Contrast:	≥25%
Weight:	3g	Dimension:	Outer Diameter 21mm±0.1mm, Height 8.7mm±0.2mm

Product Description

Specification

Product Parameters
General	Type	Elevator Control Product
		Product model	EM1830
		Brand Name	WCMI
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	2 years
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS、FCC、CE
		Color	black
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan Code Performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
		View Angle	Horizontal 70°, Vertical 55°
		Decoding Capability	Default Open: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar 、QR Code、PDF417、DataMatrix Default Close: Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Expand、RSS-Limited
		Depth of Field	EAN-13@13mil: 30-110mm; Code128@15mil: 30-120mm; mobile phone code:70-170mm(6 inch screen mobile phone); Wechat Payment QR code: 40-280mm(6 inch screen mobile phone)
		Scan Angle	Rotation: 360°, Pitch: 60°, Deflection: ±50°
		Scan Mode	Induction mode, continuous mode
		Precisions	1d ≥5mil / 2d ≥10mil
		Symbol Contrast	≥25%
		Swipe Support	TTL-Uart
Physical Parameters	Product Material	tempered glass
		Weight	3g
		Dimensions	Outer diameter21mm±0.1mm；Height8.9mm±0.2mm（including Connector）
		Scan Code Feedback	Light indication，Serial output
		Voltage	DC 3.3V （±10%)
		Current	＜120mA
Environmental Parameter	Operating Temperature	-30℃ ~ 70℃
		Storage Temperature	-40℃ ~ 80℃
		Shock	5-200Hz, 10Grms, 3axes, 1.5Hr
		Static Protection	contact discharge±6KV；air discharge±12KV
		IP Protection	Front IP54
		Operating Humidity	5%RH~95%RH (Non-condensing)

Company Information

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

Certification

FAQ

1. Is OEM or ODM available?

Yes. We are the factory directly. We can make it as your requirement.
2. What’s the warranty policy for the barcode scanners?
We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is
necessary for replacement or new barcode scanners replacement in the next order.
3. Why so competitive?
We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs.
4. How to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
5. How about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
