A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader

A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader

A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
  • A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
  • A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
  • A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
  • A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
  • A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
  • A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
  • A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader
Product Details:
Place of Origin: Tianjin, China
Brand Name: WCMI
Contact Now
Detailed Product Description
Private Mold: Yes Products Status: Stock
Type: Barcode Scanner Scan Element Type: CMOS
Interface Type: Usb Max Paper Size: A4
Optical Resolution: 4mil Scan Speed: 4M/S
Warranty(year): 15months After-sales Service: Return And Replacement, Free Spare Parts
Software Development Kit (sdk): Yes Color: Black
Image (Pixels) Sensor: 640 X 480 CMOS @ 100fps Light Source: Red LED
View Angle: Horizontal 44°, Vertical 34° Scan Angle: Rotation: 360°, Pitch: 60°, Deflection: 60°
Precisions: 1d ≥4mil / 2d ≥10mil Symbol Contrast: ≥15%
Dimensions: 150.32mm X 95.6mm X 88.88mm Line Length: 1.5m
Prompt Mode: LED Prompt And Buzzer

A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 0
Products Description
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 2
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 4
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 6
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 8
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 10
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 12
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 14
Product Parameters


General
Type
Wire Desktop Barcode Scanner Platform
Product model
SD5638
Brand Name
WCMI
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
15 month
After-sales Service
Return and Replacement; Free spare parts
Certification
RoHS、FCC、CE
Color
Black
Language Supported
English/Customized
Scan Element Type
CMOS


Scan code
performance
Image (Pixels) Sensor
640 X 480 CMOS @ 100fps
Light Source
Red LED
View Angle
Horizontal 44°, Vertical 34°

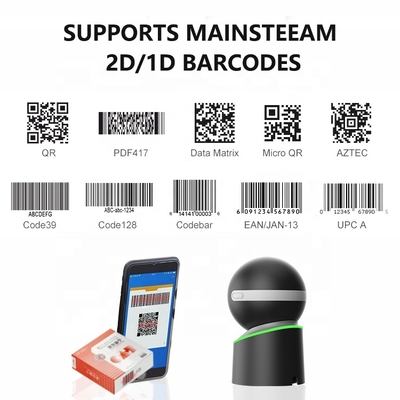

Decoding capability
2d: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417
1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI
Plessey 、RSS-14、RSS-Expand、RSS-Limited、Standard 2 of 5、Code 16K、Plessey、ChinaPost、Code49


Depth of Field
Code39: 0~50mm （5mil）
EAN13: 0~130 mm （13mil）
CODE128: 0~180 mm （15mil）
Wechat Payment(6 inch):0-230mm(TBD)
Scan Angle
Rotation: 360°, Pitch: 60°, Deflection: 60°

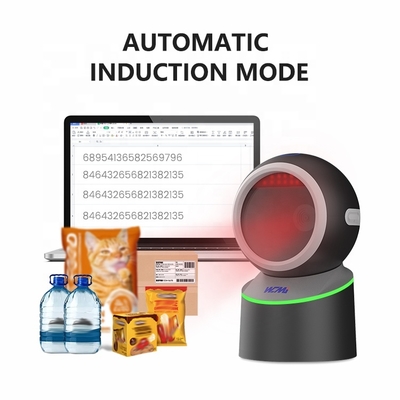

Scan Mode
Induction mode
Precisions
1d ≥4mil / 2d ≥10mil
Symbol Contrast
≥15%


Physical
Parameters
Weight
<350g
Dimensions
150.32mm x 95.6mm x 88.88mm
Interface
USB
Prompt Mode
LED prompt and buzzer
Voltage
DC+5V ±5%
Line Length
1.5m
Current
400mA


Environmental

Parameter
Operating temperature
-20℃ ~ 60℃
Storage temperature
-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 16
A SD5637 High Quality Desktop 2d Omnidiredtional Qr Barcode Reader 18
