Name: A WCMI Alipay Negative Scanner 2d Wireless bar Code Reader Desktop Barcode Scanner Platform
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Desktop Barcode Scanner

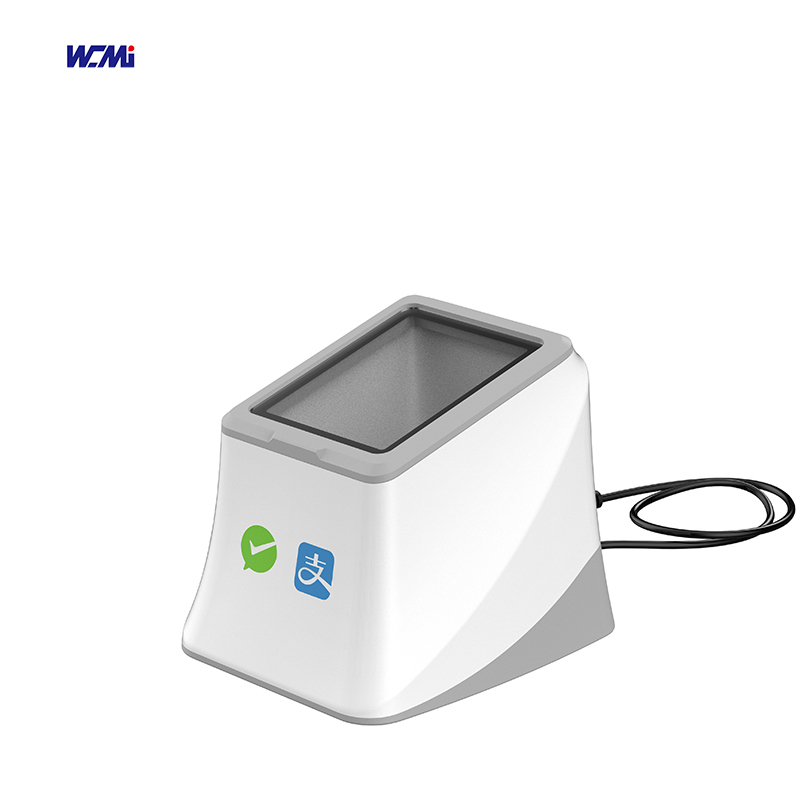

A WCMI Alipay Negative Scanner 2d Wireless bar Code Reader Desktop Barcode Scanner Platform

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Optical Resolution:	640*480
Warranty(year):	15 Months	After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support
Software Development Kit (sdk):	Yes	Color:	Gray, White
Image (Pixels) Senso:	640x480CMOS@30fps	View Angle:	Horizontal 53°, Vertical 41°
Precisions:	1d ≥5mil / 2d ≥10mil	Dimensions:	130mm X 108mm X 105mm
Motion Tolerance:	50cm/s	Light Source:	White LED
Scan Angle:	Rotation: 360°, Pitch: 60°, Deflection: 60°	Symbol Contrast:	≥20%
Line Length:	1.5m	Language Supported:	English/Customized

Product Description

SD5130 is a wired handheld barcode scanner with a minimum 4mil identification density. The product has excellent paper and screen barcode scanning performance. The lighting of SD5130 can be customized according to requirements,it supports scan code buzzer feedback and vibration feedback. It can quickly read fuzzy, damaged, reversed, color, incomplete 1D or 2D barcode, besides, SD5130 can work in a wide range of temperature and humidity under various lighting environments (including completely dark environments). With a high-speed camera optical technology, SD5130 is suitable for smart scenarios such as restaurant, supermarket, hotel, governments and so on.

Specification

Product Parameters
General	Type	Wire Barcode Scanning Box
		Product model	SD5930
		Brand Name	WCMI
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	15 month
		After-sales Service	Return and Replacement; Free Spare Parts
		Certification	RoHS、CE、FCC
		Scan Element Type	CMOS
		Color	White with Grey
		Language Supported	English/Customized
Scan Code Performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
		Light Source	White LED(6500K)
		View Angle	Horizontal 53°, Vertical 41°
		Decoding capability	Default On: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrix Default Off: Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded
		Depth of Field	EAN13：0~130mm （13mil） Code128：0 ~ 300mm （20mil ） Code39：0~30mm（5mil） Wechat Payment code : 0~340mm(5-inch screen phone)
		Scan Angle	Rotation: 360°, Pitch± 60°, Deflection± 60°
		Motion Tolerance	50cm/s
		Precisions	1D≥5mil /2D≥10mil
		Symbol Contrast	≥20%
Physical Parameters	Weight	270g
		Dimensions	130mm x 108mm x 105mm
		Interface	USB: HID-KBW (default) / HIDPOS / USB Virtual Serial Port
		Voltage	USB 5V ±5%
		Material	ABS(White)
		Line Length	1.5m
		Current	450mA (voice broadcast) / 125mA (no voice broadcast)
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Shock	5~200Hz，10Grms，3axes，1.5Hr
		Fall	Designed to Withstand 1.2m Drops
		ESD Protection	Contact Discharge ±6KV / Air Discharge ±10KV
		Operating Humidity	5%RH~95%RH (Non-Condensing)

Company Information

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certifications

FAQ

1. Who are we?
We are based in Tianjin, China, start from 2019,sell to Domestic Market(00.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.What can you buy from us?
Barcode Scanner Engine,Handheld Barcode Scanner,Omni-directional Scanner,Desktop Barcode Scanner,Access Control Products

4. Why should you buy from us not from other suppliers?
Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning
products in China.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian
