Name: A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Barcode Scanner Module

A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module

Product Details:

Place of Origin:	Tianjin,China
Brand Name:	WCMI

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner Engine	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4 Size	Warranty(year):	2-Year
After-sales Service:	Return And Replacement, Others, Repair, Free Spare Parts, Onsite Training And Inspection, Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Black	Product Name:	Barcode Scanner Module
Interface:	USB/ TTL232	Weight:	<7g
Application:	PDA	Light Source:	White LED
Color:	Balck	Storage:	-40℃ ~ 70℃
Decode Capabilities:	1D + 2D

Recommend Products

Product Description

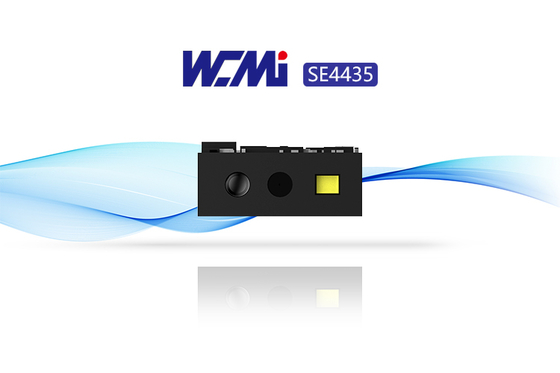

SE4435 is a 2D scanning module with small body, high integration, flexibility and convenience, and excellent performance.It can be widely used in finger ring type reader, neck strap type reader, BT pocket portable reader and other products.By leveraging our own technology, we have further perfected the engine’s overall scan performance, supporting all common 1D, 2D codes.

Specification

Product parameters
General	Type	Barcode Scanner Engine
		Product model	SE4430
		Brand Name	WCMI
		Product Specification	Mini Barcode Scanner Engine
		Products Status	Stock
		Place of Origin	Tianjin,China
		Private Model	Yes
		Warranty(Year)	1year
		After-sales Service	Return and Replacement; Free spare parts
		Certification	RoHS FCC CE
		Color	Black
		Language Supported	English/Customized
		Scan Element Type	CMOS
Scan code performance	Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
		Light Source	Fill Light: White 6500K LED
		View Angle	Horizontal 37°, Vertical 28°
		Decoding capability	2d: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417 1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、 Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code 16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)
		Depth of Field	Code39: 35~140mm （5mil） EAN13: 40~285 mm （13mil） QR: 25-185mm(15mil)
		Scan Angle	Rotation: 360°, Pitch±60°, Deflection±60°
		Scan Mode	Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
		Precisions	1d ≥4mil / 2d ≥10mil
		Symbol Contrast	≥20%
Physical Parameters	Weight	<7g
		Dimensions	26 mm 22 mm 12mm
		Interface	TTL-232 /VCP /USB-HID_keyboard / USB-HID_POS
		Prompt Mode	LED prompt and buzzer (external connection available)
		Voltage	+3.3VDC±5%
		Current	working: 230mA; Sleeping: 130mA
Environmental Parameter	Operating temperature	-20℃ ~ 60℃
		Storage temperature	-40℃ ~ 70℃
		Operating Humidity	5%RH~95%RH (Non-condensing)

Packing & Delivery

Company Profile

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Certification

FAQ

1. Is OEM or ODM available? Yes. We are the factory directly. We can make it as your requirement. 2. What’s the warranty policy for the barcode scanners? We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order. 3. Why so competitive? We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs. 4. How to control the performance stability? We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered. 5. How about the factory? We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
