Name: ASE4231 QR CMOS PDA 1D 2D Laser Ccd High Embedded Portable Barcode Reader Module bar Code Easy Scan Engine Scanner
Brand: Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Availability: InStock

Home Products Barcode Scanner Module

ASE4231 QR CMOS PDA 1D 2D Laser Ccd High Embedded Portable Barcode Reader Module bar Code Easy Scan Engine Scanner

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	WCMi

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner Engine	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb
Max Paper Size:	A4	Optical Resolution:	640*480
Warranty(year):	2-Year	After-sales Service:	Return And Replacement, Free Spare Parts
Software Development Kit (sdk):	Yes	Color:	Black
Product Specification:	CMOS Barcode Scanner Module	Image (Pixels) Sensor:	640 X 480 CMOS @ 30fps

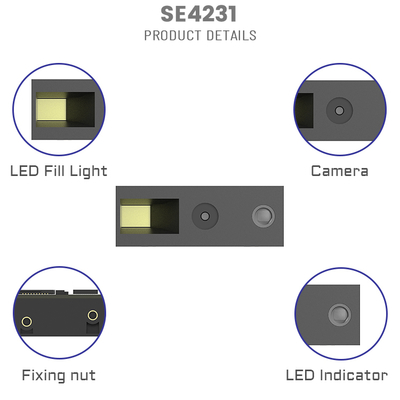

Light Source:	Fill Light: White LED / Aiming Light: Red LED	View Angle:	Horizontal 32°, Vertical 24°
Precisions:	1d ≥4mil / 2d ≥10mil	Symbol Contrast:	≥15%
Dimensions:	22mm X 13.2mm X 8mm	Interface:	TTL-232 / USB 2.0 Full Spe
Operating Temperature:	-20℃ ~ 60℃	Scan Angle:	Rotation: 360°, Pitch± 60°, Deflection±60°

Product Description

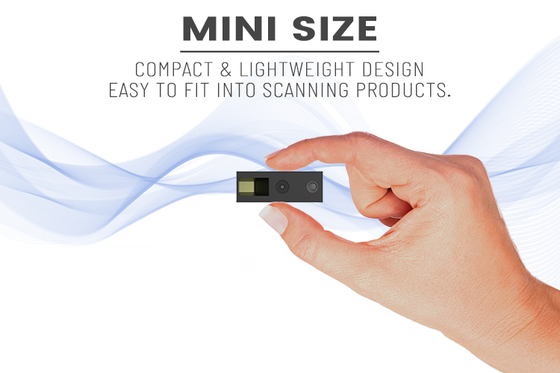

SE4231 is a mini 2D scanning engine with high integration, flexibility and convenience, and excellent performance. It can be widely used in ring type scanner, neck strap type reader, pocket portable reader and other products. By leveraging our own technology, we have further perfected the engine’s overall scan performance, supporting all common 1D, 2D codes..

Specification

item	value
Private Mold	Yes
Products Status	Stock
Type	Barcode Scanner engine
Scan Element Type	CMOS
Colour Depth	32 Bit
Interface Type	usb
Place of Origin	China
Warranty(Year)	15months
After-sales Service	Return and Replacement, Free spare parts
Software development kit (SDK)	Yes
color	Black
Product Specification	CMOS Barcode Scanner Module
Image (Pixels) Sensor	640 X 480 CMOS @ 30fps
Light Source	Fill Light: White LED / Aiming Light: Red LED
View Angle	Horizontal 37°, Vertical 28°
Scan Angle	Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Precisions	1d ≥4mil / 2d ≥10mil
Symbol Contrast	≥15%

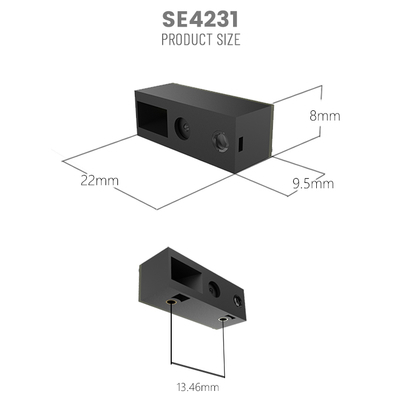

Dimensions	21.7mm x 7.2mm x 9mm
Interface	TTL-232 / USB 2.0 Full Spe

Company Profile

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.

Packing & Delivery

FAQ

1. who are we?
We are based in Tianjin, China, start from 2019.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Barcode Scanner, Barcode Scanner engine, Access Control Products, Elevator Control products, Barcode Scanner platform
4. why should you buy from us not from other suppliers?
We are one of the leading professional R&D manufacturers for barcode scanning products in China.

5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, CIP ,Express Delivery；
Accepted Payment Currency: USD, EUR, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish, Russian
